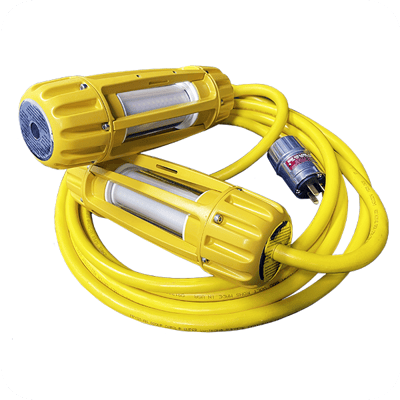

LS Series - 1,500 Lumen per Module Stringer Light

Brand: Nemalux Industrial
  • Approved for use in hazardous locations.
  • Stringer light for temporary applications.
  • Ambient temperature range is -50°C to +70°C.
  • Input voltage options is 120 VAC +/- 10%.
  • Ingress protection level is IP66/67.
Fixture weight is 1.2 kg (2.6 lbs) per module.
Fixture weight including 10ft of cord is 1.6 kg (3.5 lbs) per module.

Module spacing of 8 ft or less and a mounting height of 9 ft or less achieves OSHA-recommended illumination levels of 5fc. Nemalux designed the LS for temporary lighting applications in harsh and hazardous locations. The LS fixture is a stringer light available in several lengths and LED modules. The streamlined body allows for easier routing and pulling around obstacles. While the durable powder-coated finish stands up to the rigors of daily use. The LS has an ingress protection rating of IP66/67. Simple mounting options enable quick setup and teardown for temporary usage. The LS is a great fit for maintenance shutdown and turnaround.


LS Features
  • Approved for use in hazardous locations
  • Stringer light for temporary applications
  • Streamlined housing for quick installation and teardown
  • Versatile mounting options for increased flexibility
  • 360° light output provides up-light and down-light
  • Field replaceable sub-assemblies and cable


LS Certifications and Safety Ratings
  • Certified for general and hazardous location use.
    • Certified to:
      • UL 1088, UL 1598, UL 1598A, CAN/ULC-S1088
      • CSA C22.2 No. 137.18
    • LS Safety Ratings:
      • Class I, Division 2, Groups ABCD, T5, -50°C Ta 70°C
      • Class II, Division 1, Groups EFG, T5, -50°C Ta 70°C
      • Class III; Zone 2, Zone 20, T5, -50°C Ta 70°C
