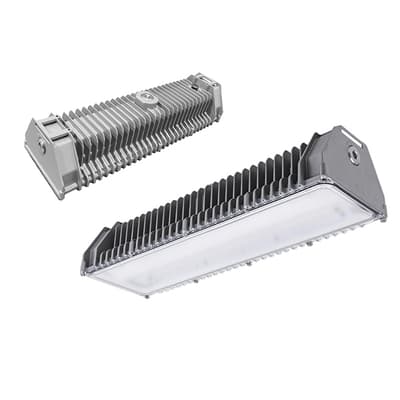

BL Series - 2,500 - 4,400 Lumen High Impact Linear Luminaire

Brand: Nemalux Industrial
  • Approved for use in general, marine, & hazardous locations.
  • Input voltage options are 120-277 VAC or 347 VAC*.
  • Ambient temperature range is -50°C to +65°C.
  • Ingress protection level is IP66.
*general location only

Fixture length is 18.42".
Fixture weight excluding mount is 2.90 kg | 6.4 lbs.

BL light fixtures are industrial grade, lightweight, and suitable for challenging applications. Designed to replace vapor-tight fluorescent lights in industrial, marine, and hazardous locations. 7 versatile mounting options expand deployment locations for this product.

BL Features
  • Designed for marine, harsh, and hazardous location use
  • Lightweight replacement for conventional vapor-tight lights
  • Field serviceable light engines, power supply, and housing elements
  • Copper-free aluminum housing with polycarbonate or glass lens
  • Approved for through-wiring of multiple units on a single circuit
  • Built-in junction area for simplified termination
  • 7 mounting options for deployment flexibility
  • Approved for use in general, marine, & hazardous locations


BL Certifications and Safety Ratings
  • Certified for general and marine location use under:
      UL 1598, UL 1598A, UL 8750 | CSA C22.2 No. 250.0, CSA C22.2 No. 250.13
  • The BL is also certified for hazardous location use under:
      UL 844 | CSA C22.2 No. 137
  • BL Safety Ratings:
      Class I, Division 2, Groups ABCD | Class II, Division 2, Groups FG | Class III | Class I, Zone 2, Group IIC | Zone 21* | Zone 22

Effective Illumination for Industrial Applications
  • Light Fixture Performance
      With 2,000 and 4,000-lumen options within the 18" long housing, the BL is a unique luminaire for industrial use. Born as a design for military shelters, this luminaire excels for industrial clients.
  • Visual Comfort and Safe Illumination
      BL light engines consist of high-efficiency LEDs and aluminum circuit boards. Increasing the ambient temperature range. Internal reflectors are covering the junction area while improving the light output. The textured and impact-resistant external lens offers comfortable and glare-free lighting.
  • Improved Visibility
      The polycarbonate lens is resistant to impacts with an integral hinge part of the fixture.

Engineered for Extreme Environments
  • Designed for Harsh Environments
      The BL is available in a general-purpose or Class 1 Div. 2 for hazardous locations. It is a linear LED luminaire for the conventional vapor-tight category.
  • Protected Against the Elements
      A copper-free aluminum housing and polycarbonate lens make up the standard BL case. While special order versions are available with a glass lens and stainless-steel frame. Sealed to IP66 and pressure equalized with the help of a specialty membrane. Multi-layer powder coats offer long-term survivability of the aluminum.

Simplified Installation & Operation
  • Installation Options
      The BL is a lightweight LED solution compared to conventional hazardous location luminaires.
  • Implementation Areas
      Areas of use include modular buildings and facility lighting. Asset perimeter, catwalks and platforms. Workbenches, mining equipment, and shelter lighting. Color temperature options range between 2700K and 6500K. 0-10V dimmable power supplies provide 120-277 VAC / 347 VAC input options.
  • Light Fixture Connection & Maintenance
      Built-in junction area with three ¾” NPT entries allows for through wiring. Reducing the need for external junction boxes. Solder-free component replacements are possible with the BL. Allowing end-of-life driver, light engine, lens, and other replacements and upgrades.

BL - Encapsulated Variant
LED lights can face submersion for an extended period in certain applications. This challenge is also present in some industrial, infrastructure and maritime locations. Nemalux offers a version of the BL that is suitable for IP68 applications. An optically clear encapsulant creates a permanent seal. Maintaining protection against the ingress of water to a depth of up to 25'. The BL-EN model operates at full output in dry as well as submerged conditions.

BL - Zone 21
The BL Series LED fixtures have been certified with a Zone 21* classification. Zone 21 is a place in which an explosive atmosphere is likely to occur in normal operation. The Nemalux luminaires can provide safe and effective lighting in industrial and hazardous locations.
*Only applies to the LC Certified Variant.
